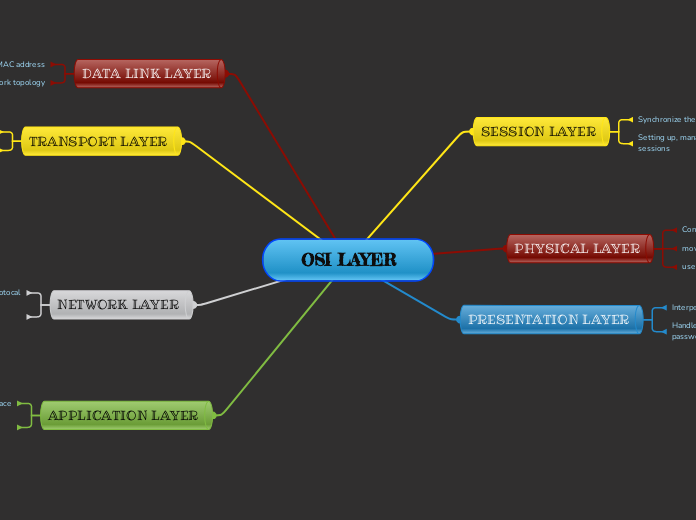

OSI LAYER  - Mind Map

OSI LAYER

SESSION LAYER

Synchronize the data during session

Setting up, managing and then tearing down sessions

PHYSICAL LAYER

Concept of half duplex or full duplex

moves bits between device

use CSMA/CD

PRESENTATION LAYER

Interperts encoded information for reading

Handles data encryption like scramblimg of password and decryption

DATA LINK LAYER

Provide access to media with MAC address

Handles error notification network topology

TRANSPORT LAYER

Provide reliable and unreliable delivery

Perform error correction before transmission

NETWORK LAYER

Routing protocal

Internetworking: This is the main duty of network layer

APPLICATION LAYER

Interacts with user interface

Handles communication between software application and low layer network service
