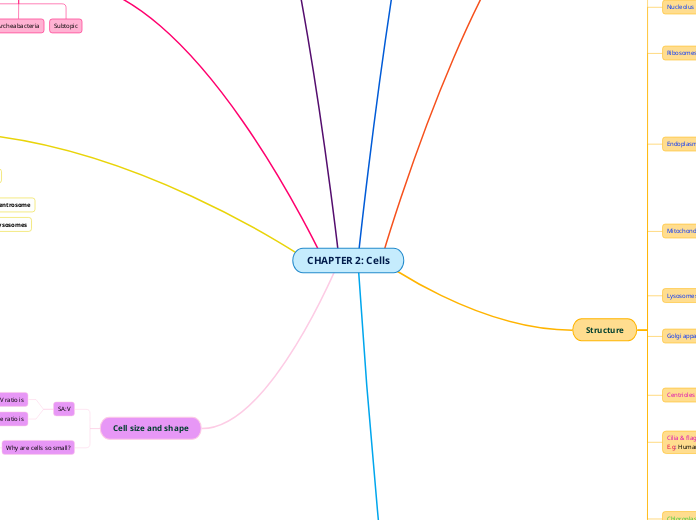

CHAPTER 2: Cells - Mind Map

CHAPTER 2: Cells

Living things

Characteristics

MRS GREEN

Movement

Respiration

Sensitivity (Responsiveness to stimuli)

Growth

Reproductive capacity

Whether it can reproduce by itself or not
Eg: Humans can reproduce by themselves while viruses can't.

Equilibrium (Homeostasis)

Respond to the specific condition
Eg: Humans: Hot -> sweat

Excretion

Nutrition

Organised structure

Composed of cells

Metabolism

The presence of chemical reaction inside.
Eg: Humans: Use oxygen -> ATP energy
Virus: no chemical reaction

Death

Organelle

Membrane - bound organelles

Structures that are surrounded by a membrane

Structure

Nucleus

Surrounded: Two layers of membrane - nuclear envelope → nuclear pores → let things in and out of the nucleus

Contains: Most genetic information of the cells and DNA. DNA → coded instructions → building proteins

Nucleolus

Location: Inside the nucleus

Where the ribosomal RNA is being produced

Ribosomes

r

Need help

The structural in a cell where proteins are made

Made of: 60%: Ribosomal RNA
40%: Protein

r

Shift+return= xuống dòng

Endoplasmic reticulum

Structure:
- Rough endoplasmic reticulum: Has ribosomes on it
∴ Proteins moving around

- Smooth endoplasmic reticulum: Has NO ribosomes on it
∴ Things are not made of protein (e.g, fats or lipids or things that are not protein) moving around

Function: A transport network → lets things move around INSIDE the cell

Mitochondria (mitochondrion)

Where the ATP (energy) is produced

Cellular respiration: Break the taken glucose to convert it into energy in the form of ATP

Structure: Double membrane

Contains: mtDNA (circular DNA)
∴ Possesses the genetic material required to encode proteins that are responsible for mitochondrial function

Lysosomes (The stomach of the cell )

Function: Contains enzymes → breaks things down within the cell

Golgi apparatus (Golgi body/complex)

Structure: Looks like a stack of pancakes

Function: Modify and package proteins to export OUT of the cell

Centrioles (centrosome)

Structure: Each centrosome contains two centrioles sit at right angle to each other

Function: Organising the spindle fibers during mitosis and meiosis

Cilia & flagella (NOT in plant cells)
E.g: Human sperm → flagella

Function: A whip to whip backwards & forwards → move a cell through a fluid

Chloroplasts

Function: The site of photosynthesis → produce glucose (a chemical energy source)
∴ Photosynthesis → glucose → cellular respiration (mitochondria) → ATP (energy)

Structure

Double membrane

Thylakoids: Lots of little membrane-bound sacs inside the chloroplast

Granum (grana): A stack of thylakoids

Chlorophyll: A pigment that the thylakoids contain inside them → capture the energy from sunlight

Large vacuole

Function

Store nutrients & water

Maintaining a plant cell’s structural integrity

Contains: A whole lot of dissolved ions

Cytoplasm & cytosol

Cytoplasm: Everything from the nuclear envelope to the cell membrane (including the cytosol), EXCEPT the nucleus

Cytosol: The watery part of the cytoplasm

Plasma membrane

Function: controls what can enter and exist the cell

Structure: made up of a phospholipid bilayer scattered with cholesterol and membrane proteins

Phosphate head:
- Hydrophilic
-
Polar

Fatty acid tail:
- Hydrophobic
- Non polar

Subtopic

Transport substances

Passive transport
- Doesn't required energy
-

Active transport

Cells theory

1. All living things are made up of one or more cells

2. Cells are the smallest and most basic of life

3. All cells come from the pre-existing cells

Prokaryotic cells

Bacteria

Archeabacteria

Subtopic

Eukaryotic cells

Protista

A single eukaryotic cell

Fungi

Plants

Cellulose cell wall → gives the plant a real and hard structure

ONE large vacuole - hold fluids

Plasmodesma (plasmodesmata) - little pipes going from one cell to another through the cell wall→ two cells can't be separated

Chloroplasts → photosynthesis → plant cell green

Animals

Centrosome

Lysosomes

Cell size and shape

SA:V

The smaller the object is, the bigger the SA:V ratio is

The shape is more flat → higher the ratio is

Why are cells so small?

Small cells → can absorb things that they need & get rid of things that they need fast and efficiently
