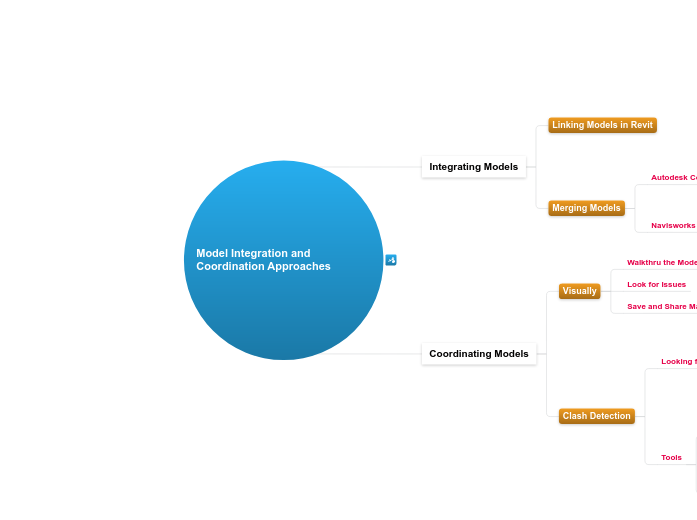

Model Integration and Coordination Approaches

m

Integrating Models

Linking Models in Revit

Merging Models

Forma Model Coordination

Publish to Forma Data Management

Copy to Model Coordination

Create Merged View in Model Coordination

Navisworks Manage

Coordinating Models

Visually

Walkthru the Model

Look for Issues

Save and Share Markups

Clash Detection

Looking for

Overlapping

Touching

Minimum Clearance

Tools

Forma Model Coordination

Model Coordination / Clash Tool

Cloud-Based Service

Everyone on team can use

On-the-fly checking > Clash AVOIDANCE

Navisworks Manage

Clash Detective

File-Based Application

Typically used by Project BIM Manager

BIM Coordination Reports and Meetings > Clash DETECTION
