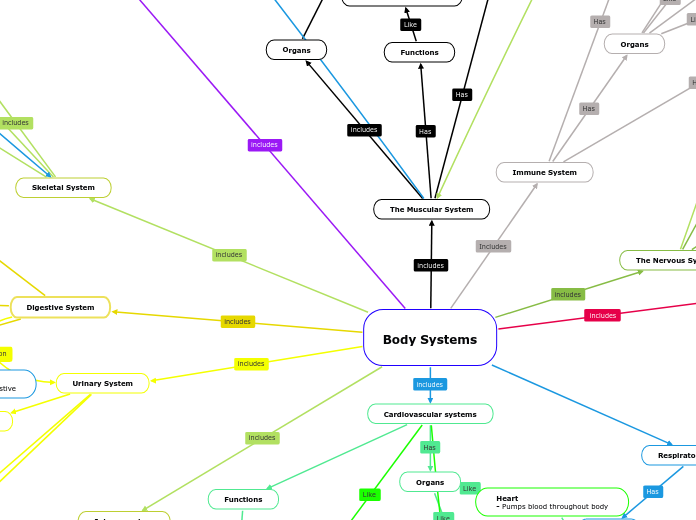

Body Systems - Mind Map

Body Systems

Endocrine System

Organ

Thyroid Gland
- Produces hormones that regulate bodys metabolic rate, growth and development

Parathyroid Gland
- Group of glands located at the bottom of our neck
- Responsible for producing hormone that controls calcium in our bloodstream

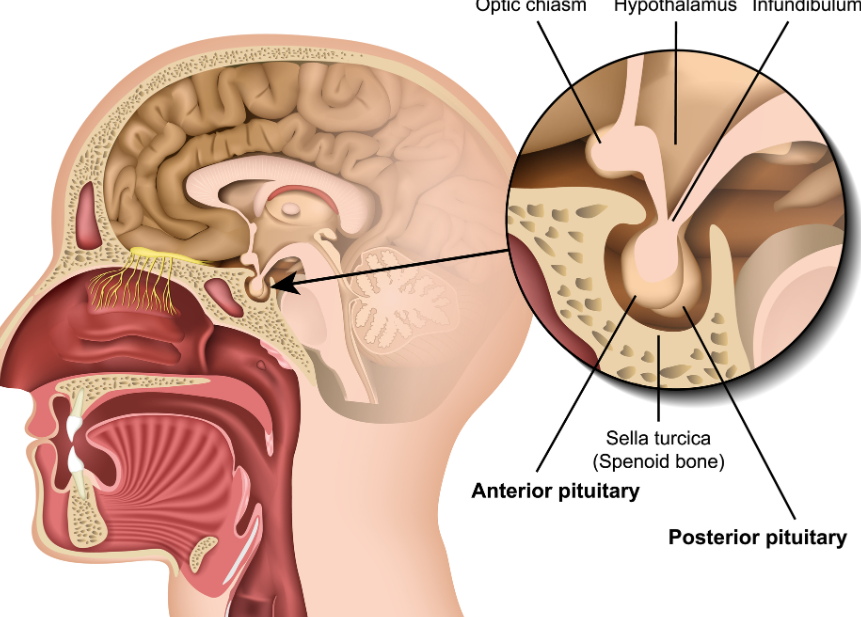

Hypothalamus
- Structure in our brain that is responsible
for coordinating everything
- Releases hormones, regulates body temp, controls appetite and more

tch

Adrenal Gland
- Small gland that produces various hormones
- These hormones control blood pressure and heart rate

Pancreas
- Regulates blood sugar levels by releasing insulin and glucagon

Malfunctions

Cushing's Disease when your body makes too much cortisol, progressive diesease.

Technology

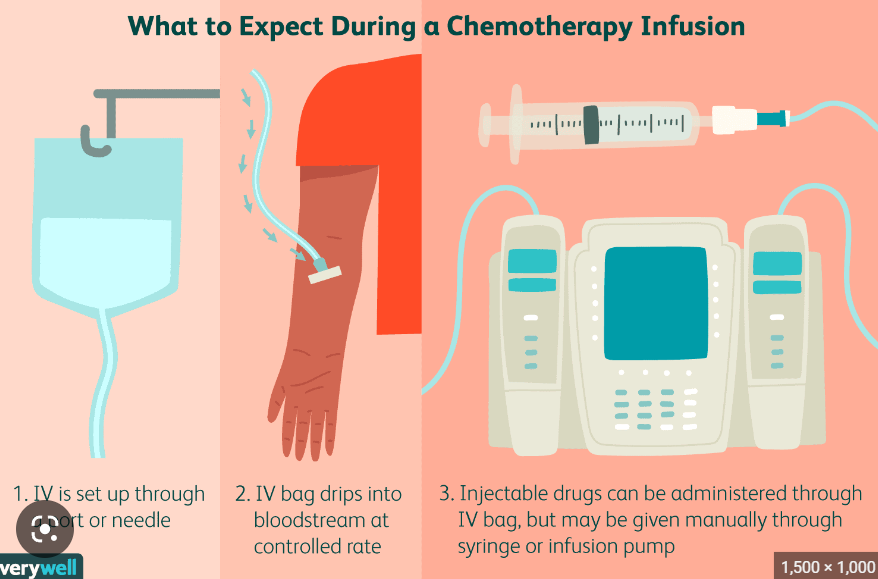

Chemotherapy

Hormone inhibiting
drugs to keep cortisol
production lowered.

Surgery to remove
the tumor/pituitary
adrenal glands.

Functions

- Regulating processes in our body
- Development of the brain, nervous system and more

Skeletal System

Organs

Cartilage
- Cartilage is a flexible connective tissue found in joints between bones.
- It consists of chondrocyte cells and a matrix of collagen fibers and proteoglycans.
- Cartilage acts as a cushion and shock absorber, allowing smooth movement and preventing damage.
- It also plays a role in bone development and growth in children.

Bones
- Bones provide support, structure, and protection to the body and are involved in movement.
- They are hard, mineralized tissues made up of living cells, collagen, and calcium phosphate.
- Bones are constantly being remodeled through the processes of bone formation and resorption.
- The adult human body has 206 bones of different sizes and shapes, from tiny bones in the ear to large bones in the legs and arms.

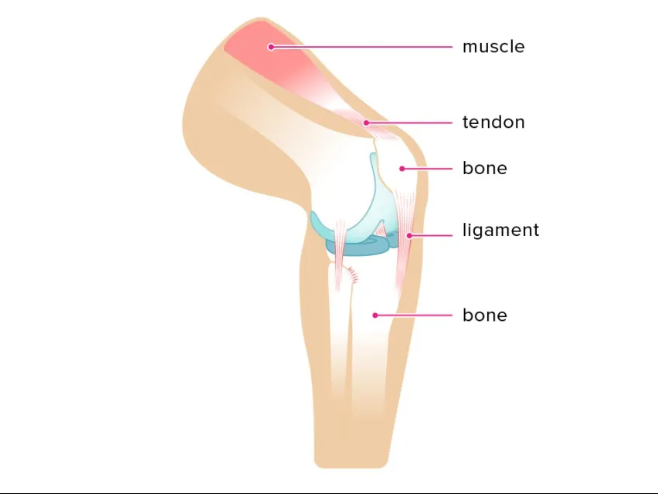

Ligaments
- Ligaments are tough, fibrous connective tissues that connect bones to each other in joints.
- They provide stability and support to joints.
- Ligaments are made up of collagen fibers and are highly elastic.
- They can stretch and recoil to absorb the forces and stresses placed on the joint during movement.
- Ligaments limit excessive motion and control joint position, thereby preventing injury.
- They play an important role in joint movement.

Tendons
- Tendons connect muscles to bones in the body
- made up of collagen fibers
- Tendons are highly resistant to tensile forces
- They transmit the force generated by muscle contraction to the bone, resulting in movement
- Tendons play a crucial role in movement
- subjected to high levels of stress and strain during physical activity.

Malfunctions

Osteoporosis
- Bones become fragile and brittle
- Loss of tissue is the cause
- Hormonal changes or calcium/vitamin D deficiency can lead to it
- Increased risk of bone fractures, especially in older individuals
- May also cause loss of height and stooped posture

Technology

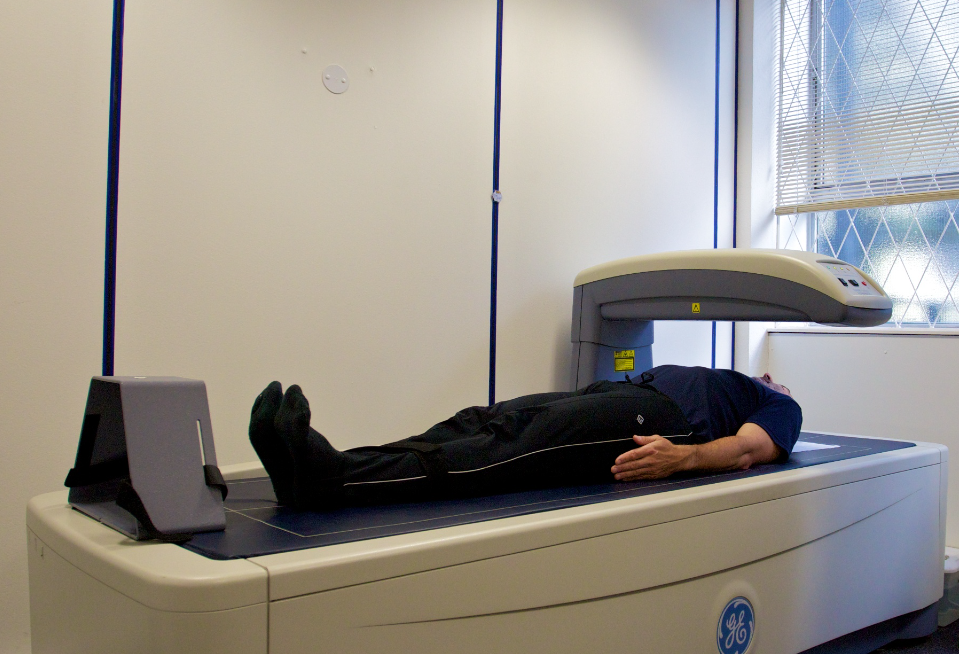

Dual-energy X-ray absorptiometry (DXA)
A type of xray to measure bone density

Functions

- GIve the body its shape
- Makes blood cells, helps with movement
- Protects organs such as our heart (ribs)

Digestive System

Organs

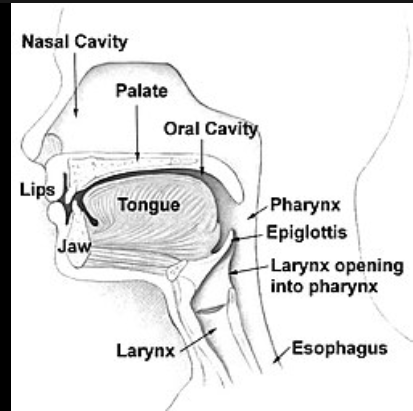

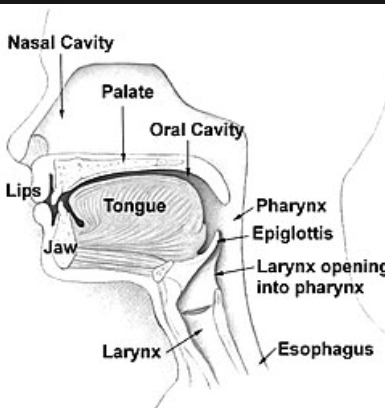

Pharynx
- It is a muscular tube-like structure.
- Located behind the nasal cavity, mouth, and larynx.
- Functions as a passageway for the respiratory and digestive systems.
- Allows air to pass from the nose/mouth to the lungs.
- Allows food to pass from the mouth to the esophagus.

Pancreas
- Pancreas: glandular organ in abdominal cavity
- Function: digestion and metabolism
- Produces enzymes and hormones
- Enzymes break down carbs, proteins, fats in small intestine
- Produces insulin and glucagon hormones
- Hormones regulate metabolism of glucose and nutrients in body

Esophagus
-Esophagus: muscular tube connecting throat to stomach
- Location: behind trachea, runs through chest and abdomen
- Function: transport food and liquids from mouth to stomach
- Mechanism: rhythmic contractions of muscles (peristalsis)
- Esophageal sphincter: ring of muscle at bottom of esophagus
- Function: prevent stomach contents from refluxing into esophagus.

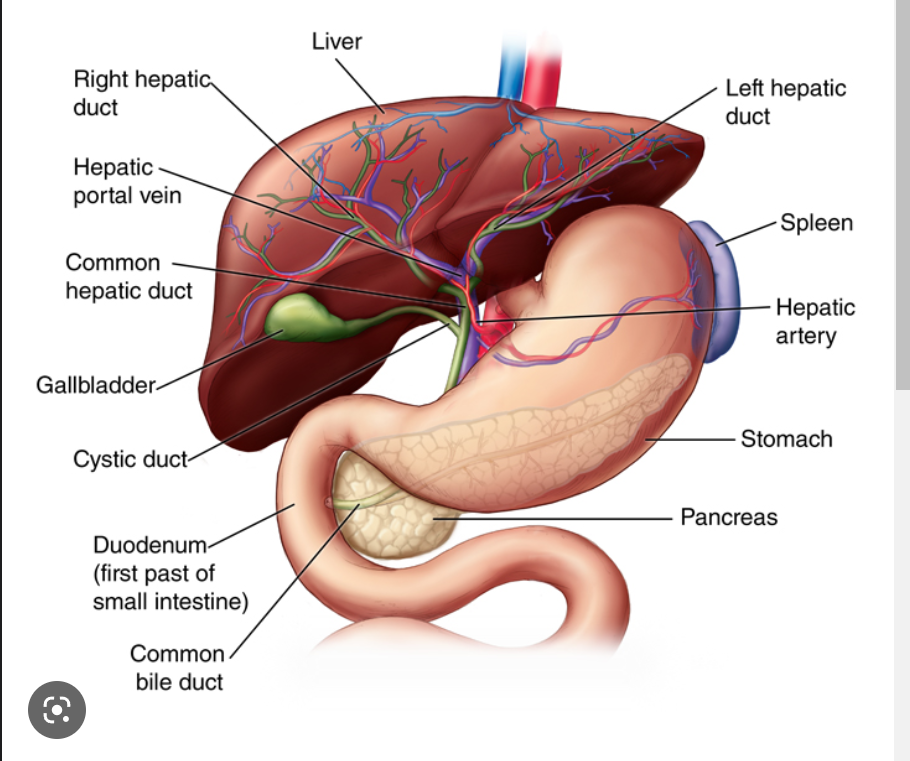

Gallbladder
- Gallbladder: small, pear-shaped organ under liver
- Function: store and release bile
- Bile: digestive fluid produced by liver
- Function: break down fats in small intestine for nutrient absorption
- Release of bile: triggered by presence of fatty foods in small intestine.

Mouth
- The mouth is an opening in the face that serves as the primary entryway for food and air into the body.
- It is lined with mucous membranes and contains structures like the tongue, teeth, and salivary glands.
- The tongue, teeth, and salivary glands aid in digestion, while the mouth also plays a role in communication through speech and facial expressions.

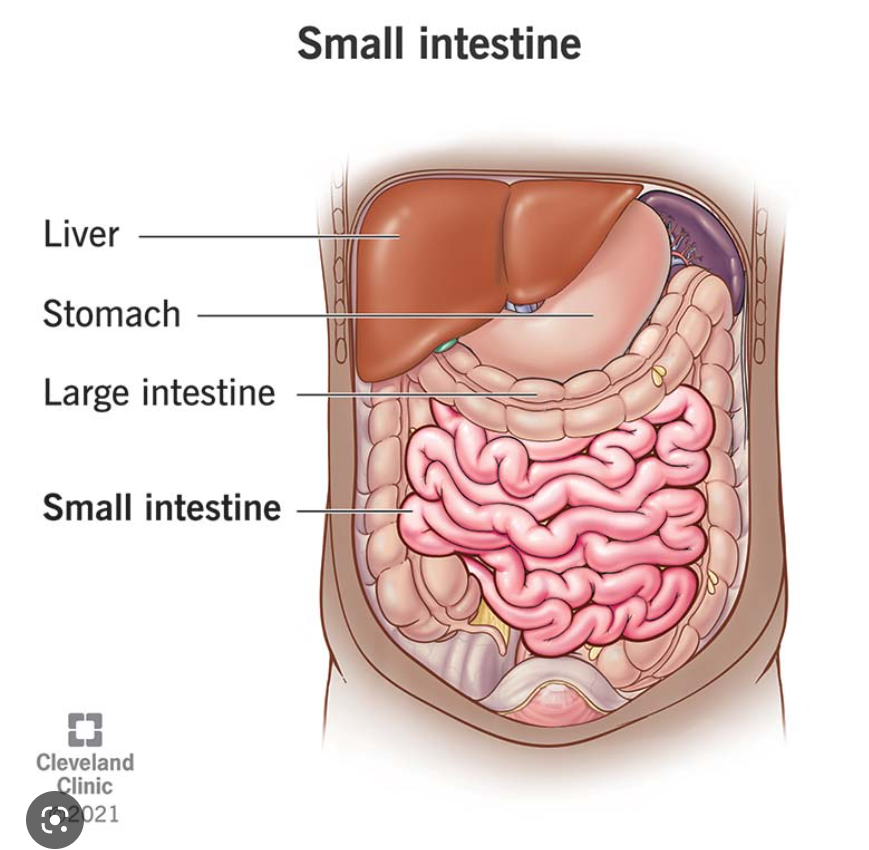

Small, Large Intestine
Small intestine:
- Narrow, highly convoluted tube
- Connects stomach to large intestine
- Absorbs nutrients from food
- Breaks down remaining food particles with enzymes

Large intestine
- Wider tube
- Absorbs water and electrolytes from undigested food material
- Forms solid feces for elimination from body through rectum and anus
- Houses beneficial bacteria that aid in digestion and promote health

Liver
- The liver is a large organ located on the right side of the abdomen.
- It plays a vital role in metabolism by processing nutrients and detoxifying harmful substances.
- The liver produces bile, stores glucose, produces blood-clotting proteins, and removes old red blood cells from circulation.

Stomach
- Stomach is a muscular organ in upper abdomen
- Located between esophagus and small intestine
- Primary function is to break down food into smaller particles
- Mixes food with gastric acid and digestive enzymes to form chyme
- Chyme is released into small intestine for digestion and absorption of nutrients
- Regulates rate of food passage into small intestine
- Helps protect body from harmful microorganisms in food.

Malfunctions

Lactose intolerance
- Lactose intolerance is a common digestive disorder caused by a deficiency of lactase, an enzyme that breaks down lactose in milk and dairy products
- Symptoms can include bloating, abdominal pain, gas, diarrhea, and nausea
- Diagnosis is done through a lactose tolerance test

Technology

Mobile apps and websites
- Various mobile apps and websites can help people with lactose intolerance to identify lactose-containing foods and provide information about lactose-free alternatives

Biotechnology and genetic engineering

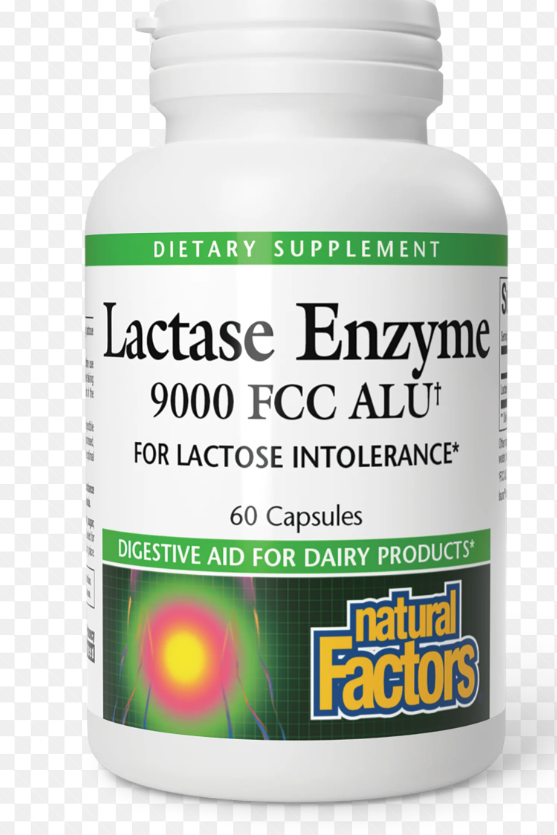

- Lactase supplements are available in the form of pills or drops and can help break down lactose before consuming dairy products

Functions

- Breaks down food into different nutritions
such as fats, carbs and protein

Urinary System

Organ

Bladder
- Bladder is a muscular sac in the pelvis that stores urine until urination
- Lined with transitional epithelium, which allows it to expand and contract
- Detrusor muscle contracts to push urine out of the bladder through the urethra during urination
- Average capacity is around 400-600 mL of urine
- Capacity can vary based on age, sex, and health status.

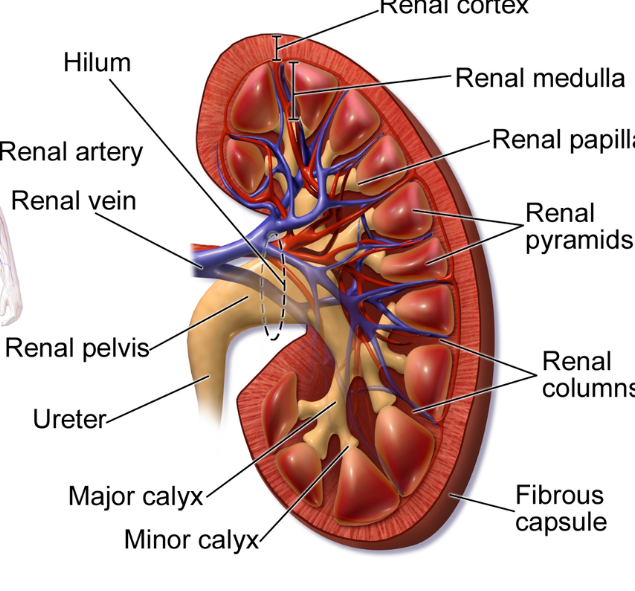

Kidney
- Kidneys: two bean-shaped organs behind rib cage in back of abdomen
- Function: filter waste products and excess fluid from blood to produce urine
- Also regulate electrolyte balance, blood pressure, and produce hormones to stimulate RBC production
- Receive blood from renal arteries and return it to the body through renal veins

Ureters
- Ureters connect kidneys to the urinary bladder
- Responsible for carrying urine using peristaltic contractions
- Approx. 25-30 cm long and 3-4 mm in diameter
- Enter the bladder obliquely to prevent backflow of urine
- Lined with transitional epithelium that allows them to expand and contract

Urethra

Male

- Male urethra: carries urine and semen, 20cm long
- Originates: bladder, passes through prostate, base of penis, external urethral opening
- Divided into 3 parts: prostatic, membranous, and spongy (penile) urethra
- Prostatic urethra: passes through prostate gland
- Membranous urethra: passes through pelvic floor muscles
- Spongy urethra: runs through the penis
- Function: carries urine and serves as a passageway for semen during ejaculation.

Female

- Female urethra is a short tube-like structure
- Serves as a passageway for urine to exit the body
- Starts at the bladder and ends at the external urethral opening
- External urethral opening is located between the clitoris and the vaginal opening
- Female urethra is about 4 cm long
- Does not have any other functions besides carrying urine out of the body

Malfunctions

Kidney stones
- Kidney stones are small, hard mineral deposits that form in the kidneys.
- They are typically made up of calcium oxalate, uric acid, or struvite.
- They can cause severe pain as they travel from the kidneys to the bladder through the ureters.

Technology

Extracorporeal Shock Wave Lithotripsy
- ESWL breaks up kidney stones into smaller pieces
- Uses shock waves to achieve this
- Smaller pieces can then pass through urinary tract more easily
- Non-invasive medical procedure
- Does not require surgery
- Outpatient basis

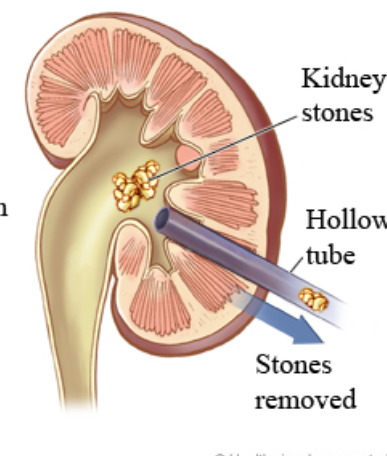

Percutaneous Nephrolithotomy
- Percutaneous Nephrolithotomy (PCNL) is a minimally invasive surgical procedure
- It's used to remove large or complex kidney stones.
- Involves making a small incision in the back
- Access the kidney using a special instrument called a nephroscope
- Break up the stone using ultrasound or laser technology
- The stone fragments are removed through the incision or through a small tube called a nephrostomy tube

Functions

- Filter blood and create waste product

Integumentary

Organs

Skin
- Largest organ

Hair Nails Glands

Muscles
- Lifting weights and support

Nerves
- Carry electrical signals from your brain to body

Blood Vessels
- Transport blood throughout body

Malfunctions

Melanoma, uncontrolled
growth of melanocytes
a type of skin cancer.

Technology

Surgical excision

Immunotheropy

Functions

- Body temp
- Vitamin d

Immune System

Malfunctions

Type 1 Diabetes -
immune system damages
the insulin-producing cells in the pancreas

Technology

Insulin Shots/Pump
to control blood
glucose, prevent
damage from diabetes.

Organs

Lymph Node

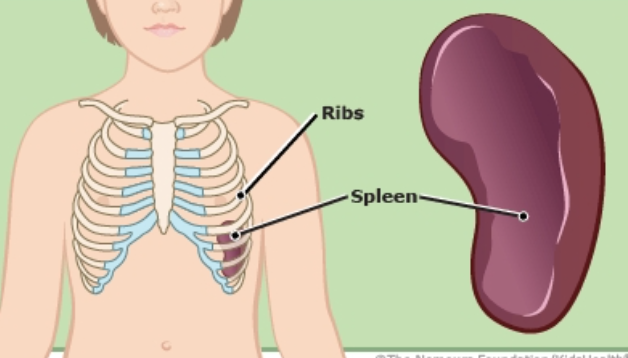

Spleen

Lymphatic Vessel

Thymus Gland

Functions

Defend body against infections
protecting the body's cell.
Recording germs it has beat
to recognize and destroy.

The Nervous System

Functions

Transmit signals
from brain to every
other system/
organ

Malfunctions

Dysautonomia failure
of ANS, automatic functions

Technology

Therapy and surgery

Dieting/Lifestyle Changes/Plans

Organs

Spinal Cord
- Sends motor commands

Brain
- Computer of the body

The Muscular System

Malfunctions

Muscular Dystrophy
Loss of muscle,
loss of movement.

Technology

Steroids to maintain
muscle mass.

Braces and Wheelchairs
to deal with complications

Functions

Movement of the body

Organs

Skeletal Muscles
- Muscles that connect to your bones and help with movement

Cardiovascular systems

Organs

Blood vessels
- Transport blood throughout body (veins and arteries)

Heart
- Pumps blood throughout body

Functions

Make sure your bdy gets
oxygen and nutrients

Malfcuntions

Atherosclerosis
Plaque build up
in arteries

Technology

Anti-Clotting medicine to reduce risk of complication

ACE inhibitors
lowering blood
pressure, lowering
heart workload.

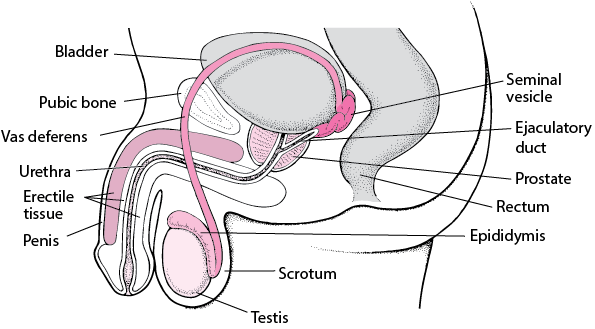

The Reproductive System

Male

Functions

Produce Testosterone

Produce Sperm

Reproduce with female

Organs

Penis
- Primary sexual organ
- Used for urination

Testes
- Produces sperm

Scrotum
- Function is to protect the testes

Vas deferens
- A tube that carries sperm from the testicles

Prostate gland
- A tube that carries sperm from the testicles

Urethra
- Male urethra: carries urine and semen, 20cm long
- Originates: bladder, passes through prostate, base of penis, external urethral opening
- Divided into 3 parts: prostatic, membranous, and spongy (penile) urethra
- Prostatic urethra: passes through prostate gland
- Membranous urethra: passes through pelvic floor muscles
- Spongy urethra: runs through the penis
- Function: carries urine and serves as a passageway for semen during ejaculation.

Malfunction

Erectile Dysfunction
Inability to maintain erection.

Technology

Vacuum Erection Devices

Penile Implants

Female

Organs

Uterus
- Where the fetus forms, develops and grows
- Also known as the womb

Fallopian tubes
- Pair of tubes where the eggs travel from the ovaries to the uterus

Vagina
- Has 3 main functions
- Passageway for blood during period, also where the baby exits the womb from and for sexual intercourse

Ovaries
- A gland where eggs form
- Also where hormones such as estrogen and progesterone are made

Functions

Menstruation

Fertility

Reproduction

Malfunctions

Endometriosis

Technology

Pain management

Birth Control Pills
to control hormones

Respiratory system

Funcrions

Allow us to breathe

Malfunction

Asthma
Causes tightness in your airways causing difficulty in breathing and wheezing.

Technology

Inhalers
Relaxes your airway
allow air to be
breathed in easily.

Nebulizers
Turns liquid medicine
to mist, allowing
medicine to be breathed
in.

Organs

Lungs
- Air enters our lungs located near our chest

Trachea
- Airway that leads from Larynx to bronchi

diaphragm
- Helps inhale and exhale
-

Pharynx

- It is a muscular tube-like structure.
- Located behind the nasal cavity, mouth, and larynx.
- Functions as a passageway for the respiratory and digestive systems.
- Allows air to pass from the nose/mouth to the lungs.
- Allows food to pass from the mouth to the esophagus.

Larynx
- Lets air pass from throat to trachea

Bronchi
- Direct air to left and right lung
-

Floating topic

- Skeletal system and muscular system work with each other
- Bones give shape to our body and support it while our muscles connect to our bones and help with movement such as lifting things up

- Rely on each other
- Lung bring oxygen to the heart where the blood pumps oxygenated blood throughout the body
- Heart muscles can't function without oxygen

Erection relies on blood flow

- Urinary works like a filter
- Tubes of this are connected to digestive

Click here to center your diagram.
Click here to center your diagram.
