6M Fishbone diagram - Mind Map
The 6M Fishbone Diagram is a cause and effect type of diagram that highlights the 6Ms of production: Manpower, Method, Machine, Material, Measurement, and Milieu (Environment).
Keywords: fishbone diagram, fishbone, fish bone, 6M, 6Ms of production, Manpower, Method, Machine, Material, Milieu, Measurement, brainstorming, cause and effect, cause and effect diagram, cause & effect, problem-solving session, problem solving session.

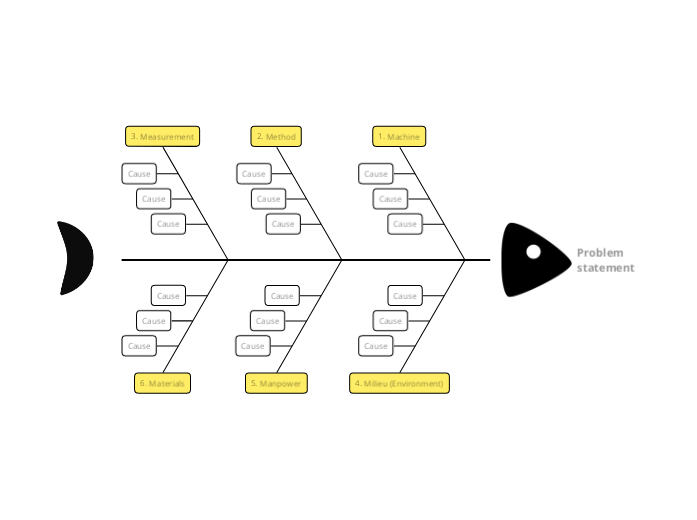

6M Fishbone diagram template
This 6M Fishbone diagram template is a great way to visually represent a cause and effect diagram. It contains 6Ms standing from Manpower, Method, Machine, Material, Milieu (Environment) and Measurement.
Problem statement
Describe the problem in one sentence, as a question.
Try to find five different ways to describe the problem and choose the one that suggests solutions.
Materials
Under this topic, list potential causes that relate to the materials or information being used. Think about:
- What quality and quantity of materials or information are needed
- How you measure this quality and quantity
- How you detect unacceptable quality or quantity
- The effects of unacceptable quality or quantity
Manpower
Under this topic, list all the potential causes of the problem that relate to manpower. Think about:
- What skill levels are required
- How skill levels are measured and checked
- What effort or time are needed and how this is provided
- What communications are needed
- What kind of mistakes could be made
- What assumptions people might be making
- What shortcuts might be used that affect the outcome
- How mistakes are detected and handled
- How work is checked and approved
Milieu (Environment)
Under this topic, list potential causes of the problem that relate to its environment. Think about:
- What range of conditions must be accommodated?
- How does the problem change under different conditions and circumstances?
- Which factors could be affected by changing conditions?
Measurement
Under this topic, list potential causes that relate to measurement and record-keeping. Think about:
- What measurements are taken
- When measurements are taken
- How measurements are taken
- How accurate the measurements are
- How reliable they are
- What the measurements help you to do and how they are used
- The potential effects of poor measurement or no measurement
Method
Under this topic, list potential causes of the problem that relate to the method or process. Think about:
- Whether the method is suitable
- Accuracy and completeness of descriptions
- Handover to and from other processes
- What records are kept
- How errors or exceptions are handled
Machine
Under this topic, list all the potential causes of the problem that relate to machinery, equipment or tools. Think about:
- Failures
- Performance
- Reliability
- Repeatability
- Usability
- Suitability for purpose
- Known defects or issues
- Previous repairs or maintenance
Cause
